Single product

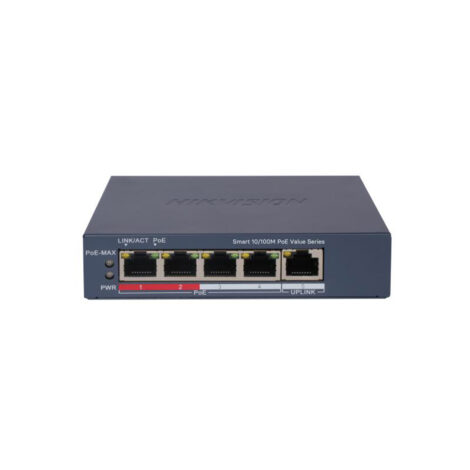

The 4-Port Fast Ethernet Unmanaged PoE Switch offers intelligent power management and reliable video transmission, making it ideal for surveillance and networking setups. It features intelligent PoE management to prevent overload by automatically adjusting power when the power supply exceeds limits, extending switch lifespan. With long-range PoE transmission up to 300 meters, it?s perfect for flexible camera placement. The 8-core adaptive power supply reduces cable power loss and ensures stable performance. Equipped with 6KV surge protection, it remains reliable in harsh environments. Its VIP port ensures data priority during network congestion for uninterrupted video feeds. PoE Specifications: IEEE 802.3af/at compliant, 8-core simultaneous power over Ethernet pins 1/2/3/6 and 4/5/7/8. PoE available on ports 1 to 4 with a max port power of 30W and total power budget of 35W; maximum power consumption is 38W. Network Specs: 4? 100 Mbps PoE ports + 1? 100 Mbps uplink port, all RJ45 full-duplex, MDI/MDI-X adaptive. Complies with IEEE 802.3, 802.3u, 802.3x standards; supports store-and-forward switching with standard and extend modes. Ports 1?2 are high-priority, and ports 1?4 support long-distance transmission. Features a MAC address table of 1K, switching capacity of 1 Gbps, packet forwarding rate of 0.744 Mpps, and internal cache of 448 Kbits. General Details: Metal shell, fan-free design, net weight 0.2 kg, gross weight 0.48 kg. Dimensions: 105 mm ? 27.6 mm ? 83.1 mm (4.1? ? 1.1? ? 3.3?). Operating temperature: -10 ?C to 55 ?C, storage: -40 ?C to 85 ?C. Humidity: 5% to 95% (non-condensing). Power input: 48 VDC, 0.8 A, with idle consumption of 3W. Certifications: EMC: FCC, CE-EMC, RCM, IC; Safety: UL, CB, CE-LVD; Chemistry: CE-RoHS, WEEE, REACH. This switch is engineered for efficient, safe, and long-lasting power and data delivery across your network.
