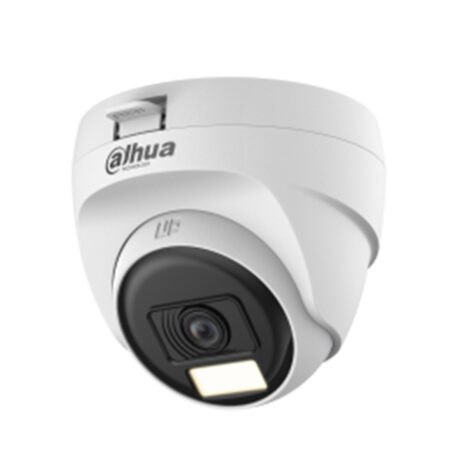

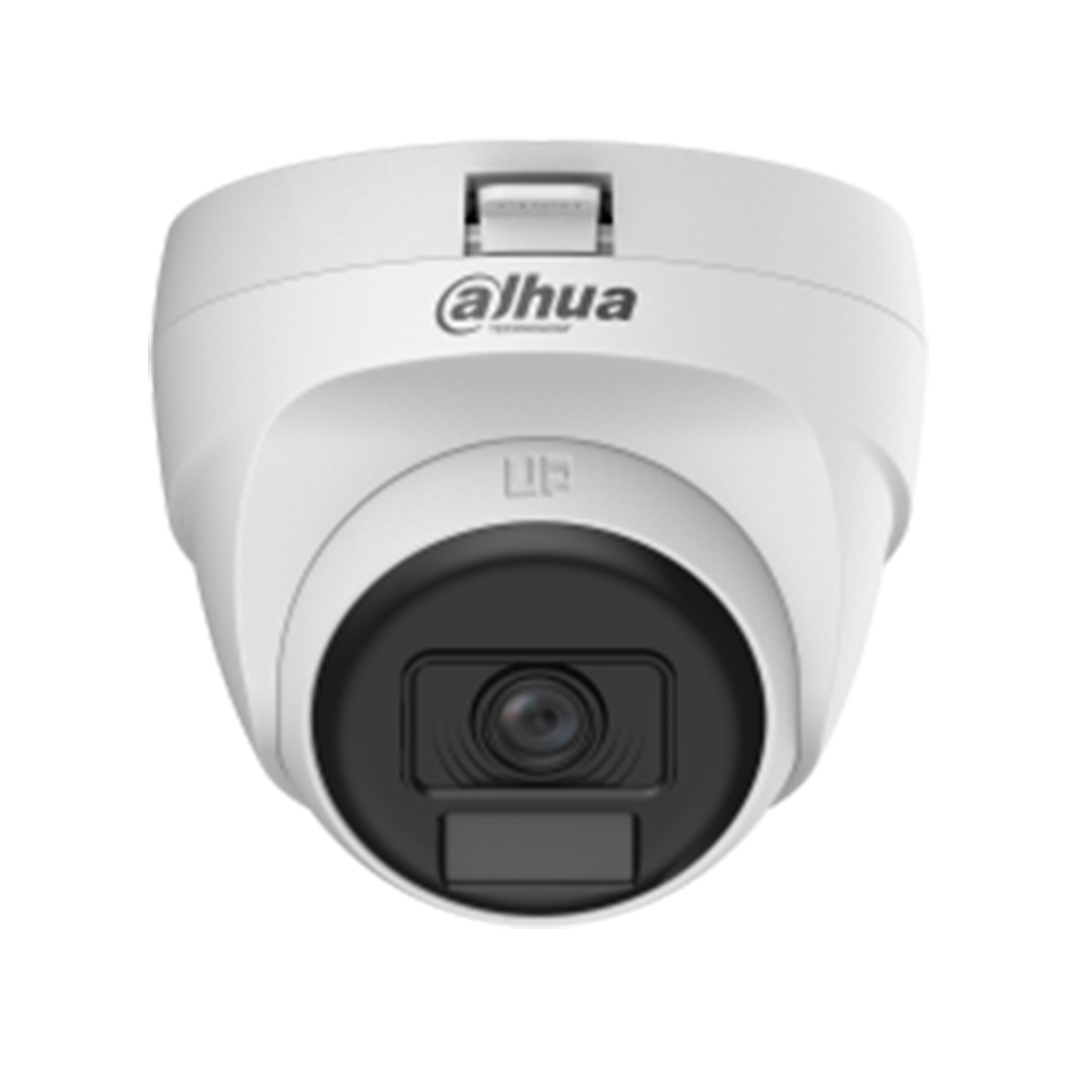

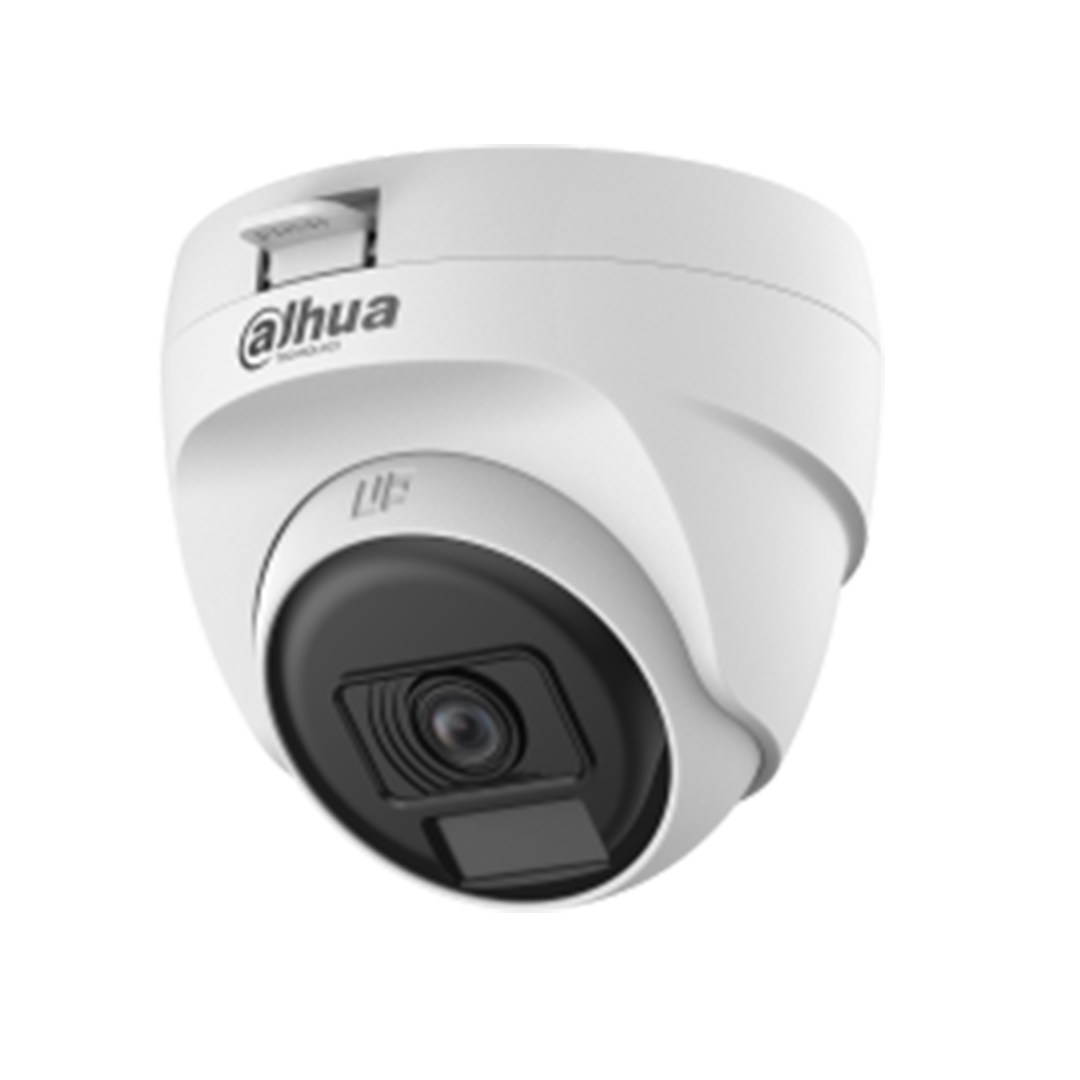

The HAC-T1A21-U-IL-A is a 2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera capable of recording at a maximum of 30 fps@1080p. It features Smart Dual Light technology with IR illumination up to 25 meters and warm light up to 20 meters. It comes with a built-in microphone for audio capture and a quick-to-install eyeball design that saves installation time. The camera is equipped with a 2.8 mm fixed lens (3.6 mm optional) and supports CVI/CVBS/AHD/TVI switchable output formats. It uses a 2MP CMOS image sensor delivering a maximum resolution of 1920 (H) ? 1080 (V), with progressive scanning and an electronic shutter speed range of 1/25 s?1/100,000 s for PAL and 1/30 s?1/100,000 s for NTSC. The minimum illumination is 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), and 0 lux with the illuminator on. The camera offers a signal-to-noise ratio greater than 65 dB. It features 2 IR and 2 warm light illuminators with Auto and Manual control options. The camera’s angle adjustment allows for pan: 0??360?, tilt: 0??78?, and rotation: 0??360?. The lens is a fixed-focal M12 mount with a focal length of 2.8 mm or 3.6 mm and a maximum aperture of F2.0. The field of view for the 2.8 mm lens is H: 100?, V: 54?, D: 117? and for the 3.6 mm lens, H: 80?, V: 43?, D: 94?. The iris is fixed, and the close focus distance is 0.5 m (1.64 ft) for the 2.8 mm lens and 0.8 m (2.62 ft) for the 3.6 mm lens.
