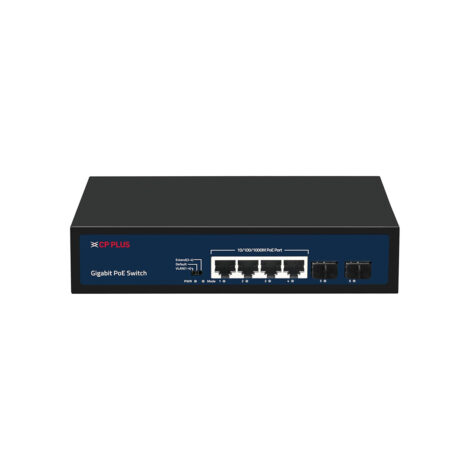

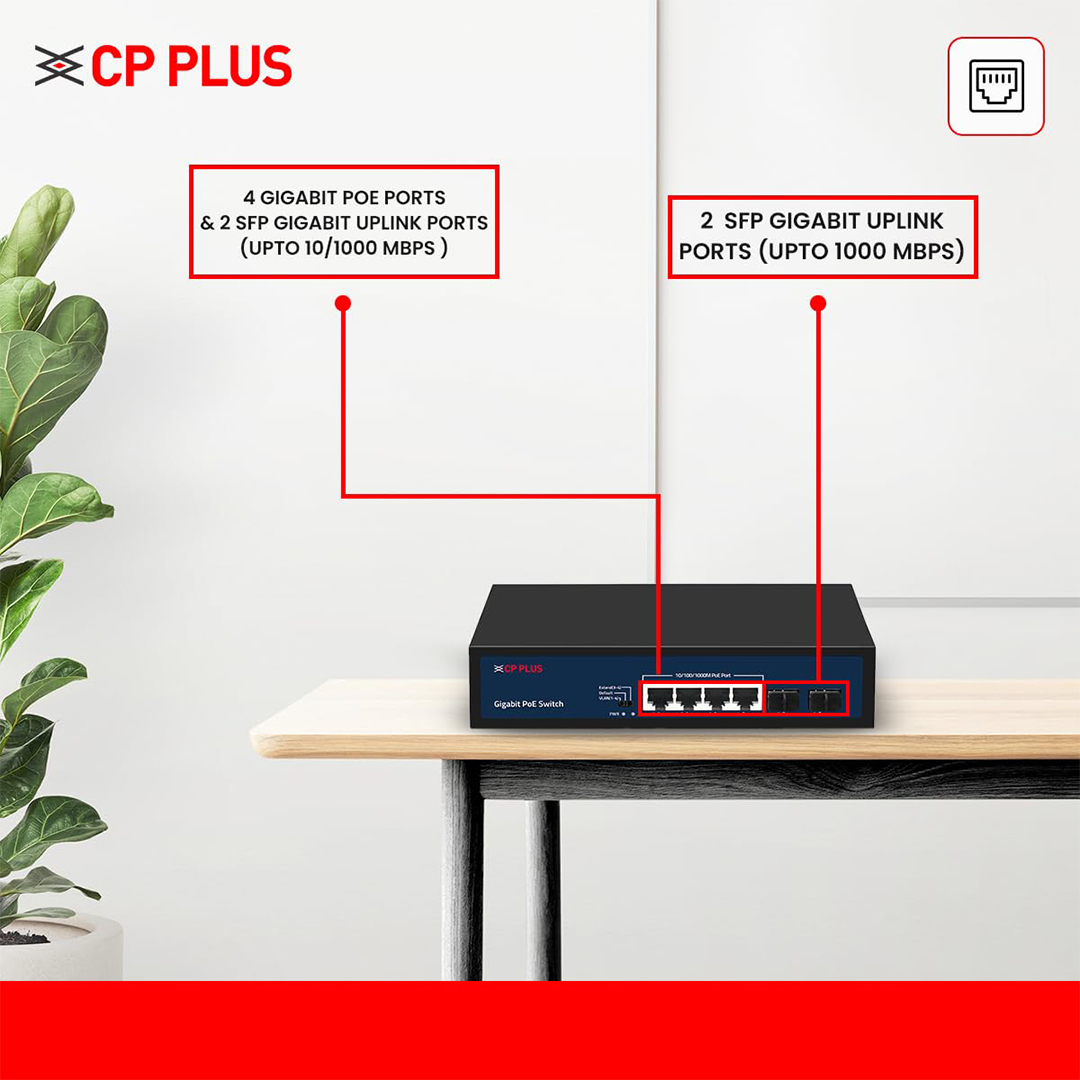

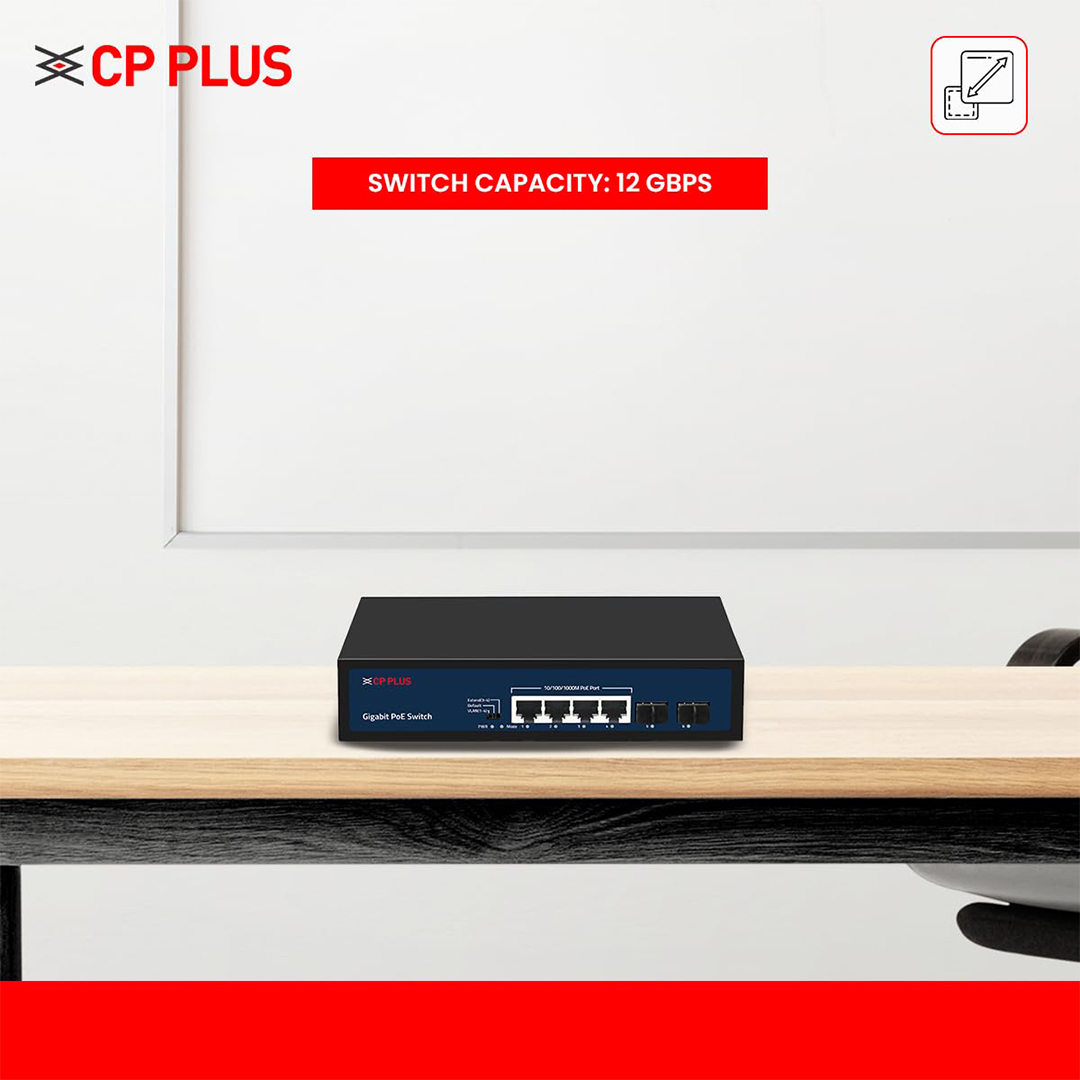

The CP-DNW-GPU4G2-48 is a high-performance 6-port PoE switch featuring 4 Gigabit RJ45 PoE ports with a maximum output of 30W per port, and 2 Gigabit uplink ports for efficient data transmission up to 100 meters. Designed to support IEEE802.3i/802.3u/802.3x/802.3ab standards, it delivers a total PoE power budget of 48W, making it suitable for small to medium-sized surveillance and networking applications. The switch offers a switching capacity of 12 Gbps full duplex and a packet forwarding rate of 1.488 Mpps per port, ensuring smooth data flow. It supports anti-thunder protection (2KV) and ESD protection (1.5KV air and contact discharge), enhancing reliability in harsh environments. The built-in power supply accepts an input voltage of 110?264V AC at 50/60Hz with power consumption under 5W. The PoE power is supplied via 1/2(+) and 3/6(-) pins, compatible with IEEE802.3af and IEEE802.3at standards. The unit supports up to 2K MAC address entries and features intelligent LED indicators for link, data, and power status. Compactly designed with dimensions of 202mm ? 140mm ? 45mm, it operates efficiently in temperatures ranging from -10?C to -50?C and storage temperatures from -40?C to 70?C, with humidity levels of 10% to 95% (non-condensing).
